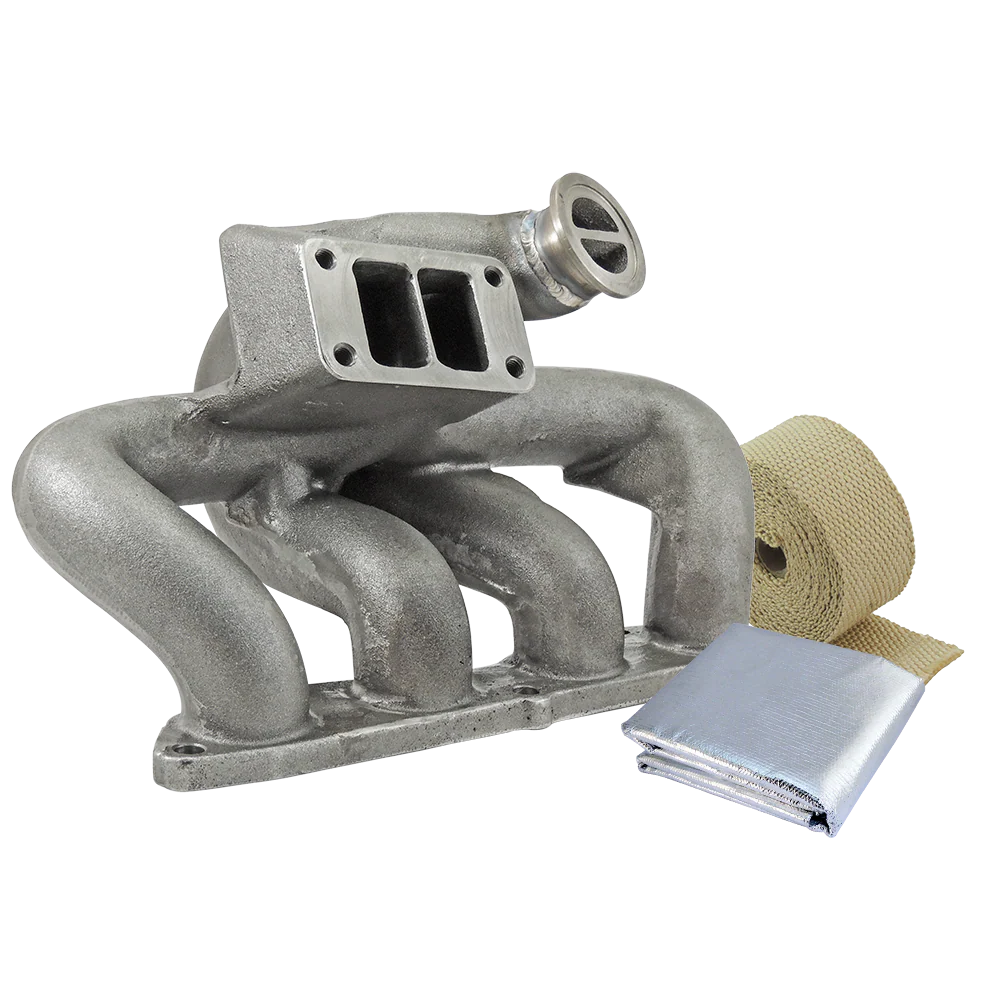

SPA TURBO 8th gen Honda Civic SI (K20 engine) TWIN SCROLL CAST TURBO MANIFOLD V-BAND WASTEGATE
SPA Performance brings another great news for K20 lovers! The new turbo manifold for 8th gen Honda Civic SI, twin scroll and with V-Band 44mm wastegate flange, ensuring maximum flow and boost control for your project.
Application: 8th gen Honda Civic SI (K20 engine)
Turbocharger position: Bottom mount
Turbine housing flange: T3
Wastegate flange: V-Band 44mm
Runners internal diameter: 43mm
Material: Cast iron
To install the turbo manifold, it is necessary to remove the Vtec solenoid valve heat shield.
Attention: Due to the proximity to the brake line and Vtex solenoid valve, the turbo manifold comes with a 50x50cm aluminum reflective fiberglass for application on the fire wall (using glue) and a 2”x5m black exhaust wrap to wrap the manifold.
SPA Performance brings another great news for K20 lovers! The new turbo manifold for 8th gen Honda Civic SI, twin scroll and with V-Band 44mm wastegate flange, ensuring maximum flow and boost control for your project.
Application: 8th gen Honda Civic SI (K20 engine)
Turbocharger position: Bottom mount
Turbine housing flange: T3
Wastegate flange: V-Band 44mm
Runners internal diameter: 43mm
Material: Cast iron
To install the turbo manifold, it is necessary to remove the Vtec solenoid valve heat shield.
Attention: Due to the proximity to the brake line and Vtex solenoid valve, the turbo manifold comes with a 50x50cm aluminum reflective fiberglass for application on the fire wall (using glue) and a 2”x5m black exhaust wrap to wrap the manifold.
Description
SPA Performance brings another great news for K20 lovers! The new turbo manifold for 8th gen Honda Civic SI, twin scroll and with V-Band 44mm wastegate flange, ensuring maximum flow and boost control for your project.
Application: 8th gen Honda Civic SI (K20 engine)
Turbocharger position: Bottom mount
Turbine housing flange: T3
Wastegate flange: V-Band 44mm
Runners internal diameter: 43mm
Material: Cast iron
To install the turbo manifold, it is necessary to remove the Vtec solenoid valve heat shield.
Attention: Due to the proximity to the brake line and Vtex solenoid valve, the turbo manifold comes with a 50x50cm aluminum reflective fiberglass for application on the fire wall (using glue) and a 2”x5m black exhaust wrap to wrap the manifold.
