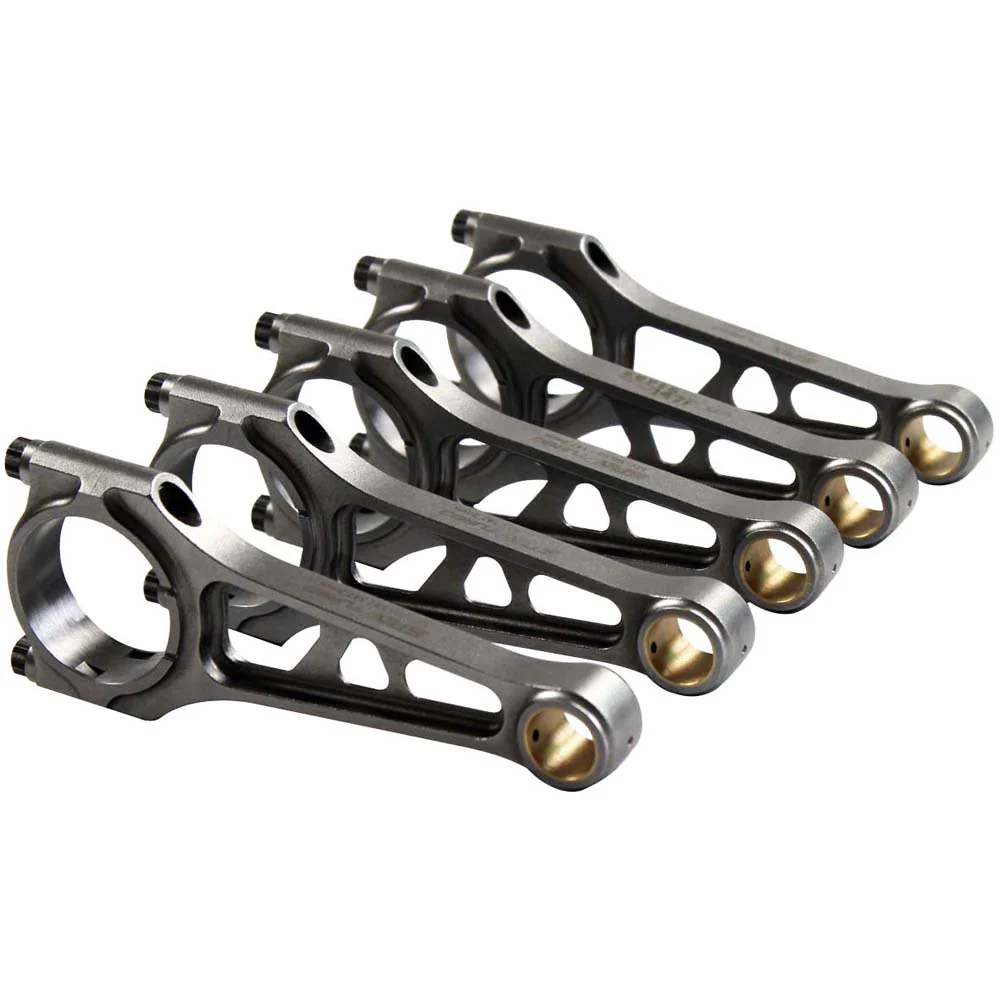

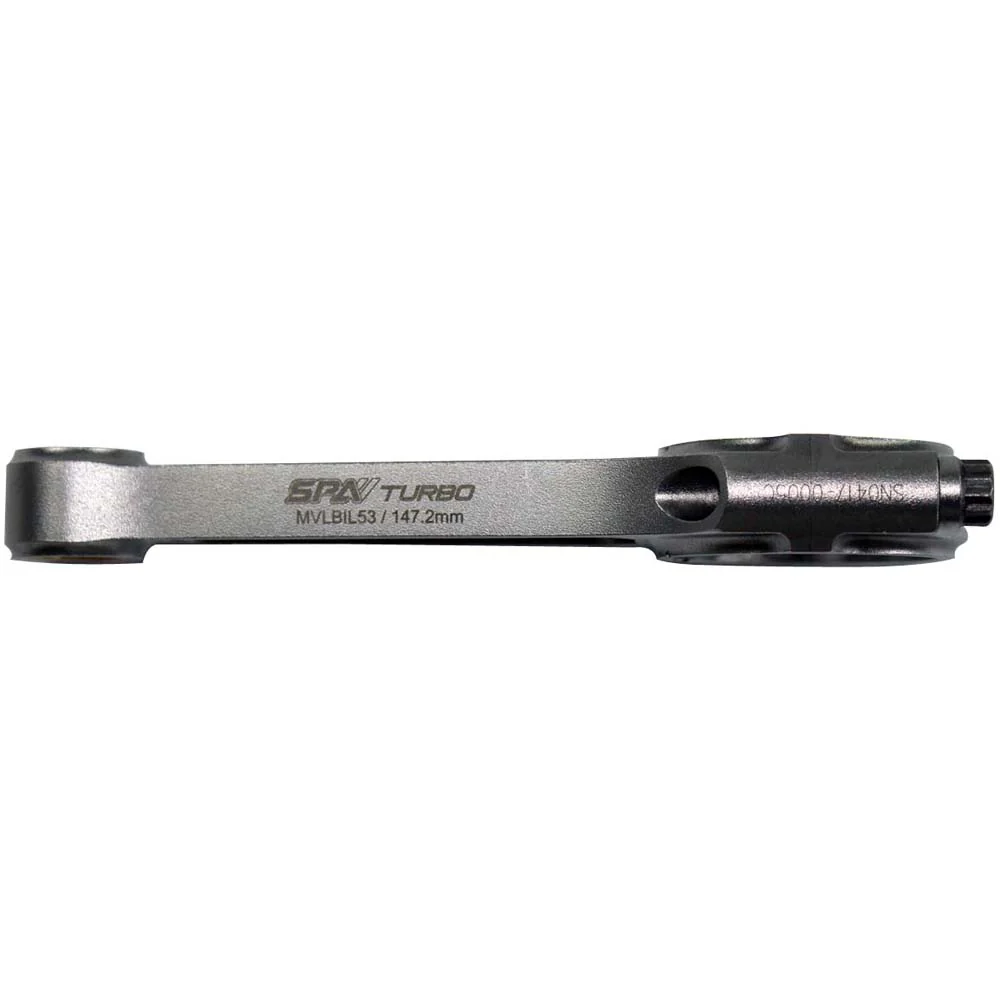

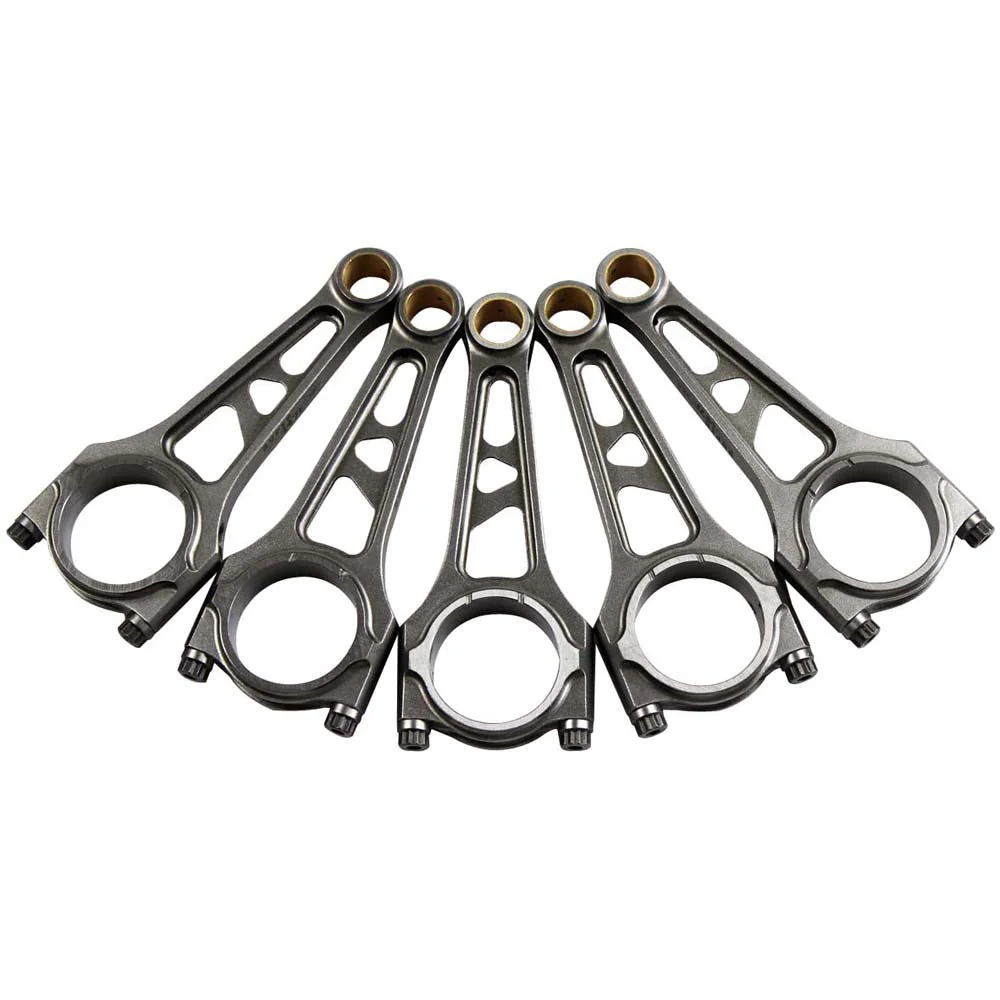

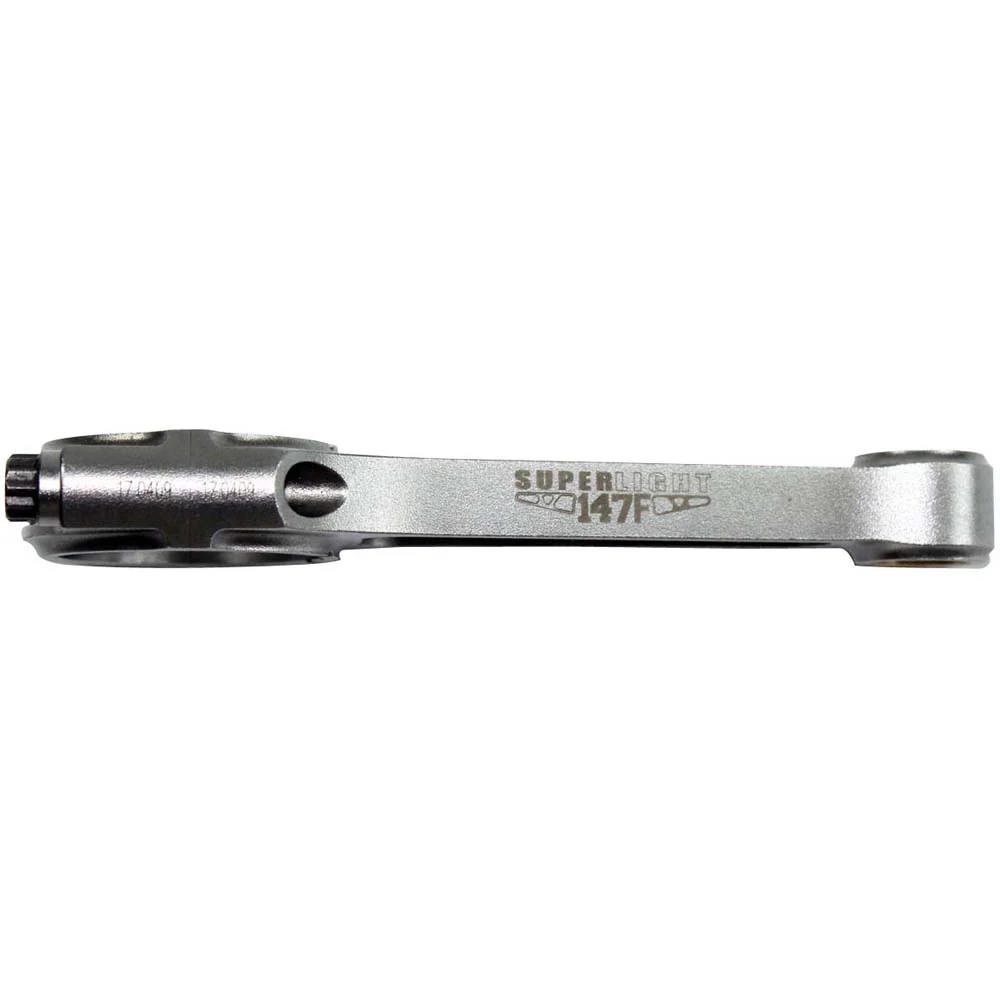

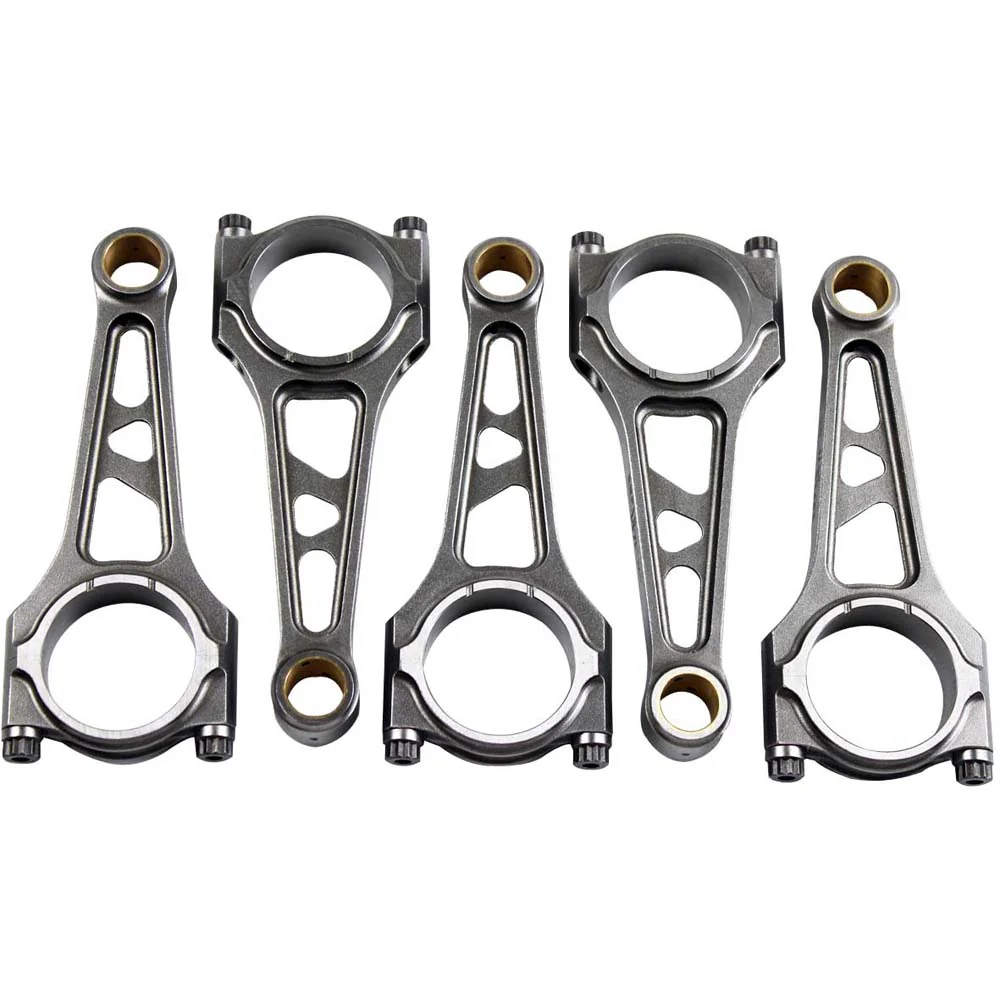

SPA TURBO Fiat Coupe 20v 5.787" 147mm x 20mm super light con rod set
- The 147mm super Light con rods was made to use lower compression height pistons, resulting on a lower R/L Ratio.
- the beneficts from a lower R\L Ratio are less vibration, holding up more HP
- That will work on FIAT / Lancia 5 Cyl 20v engines using custom pistons.
- A beam extra light construction
- Center to center distance: 147mm (5.787")
- Big end size: 51.35mm (2.022")
- Small end size: 20mm (0.787")
- 3/8" bolts SPA 8000 bolts included – 205.000PSI tensile strength
- Tightening torque: 6 kgfm (43.40 lbft)
- 4340 forged steel.
- For up to 600 HP engines.
- Maximum RPM: 8000 Rpm
- Super light-weight design: 511g (18.03 oz) each rod with bolts
- Set with 5 pieces.
- 3 oil channels at the small end and 2 oil channels at the big end for maximum pin lubrication
All SPA Turbo connecting rods come with CMD Extreme Pressure lubricants.
About CMD Extreme Pressure lubricants:
When the operation requires extreme pressure, all ordinary lubricants break down and allow metal-to-metal contact with consequent scoring, frictional heat, work and cutting tool damage.
They will not corrode the finest surfaces nor will they mulsify with cooling liquids. But these facts are not the most remarkable feature of CMD lubricants. The truly outstanding property of CMD is its ability to withstand extreme pressures!
CMD EXTREME PRESSURE lubricants are regularly used from 40,000 to 50,000 psi.
