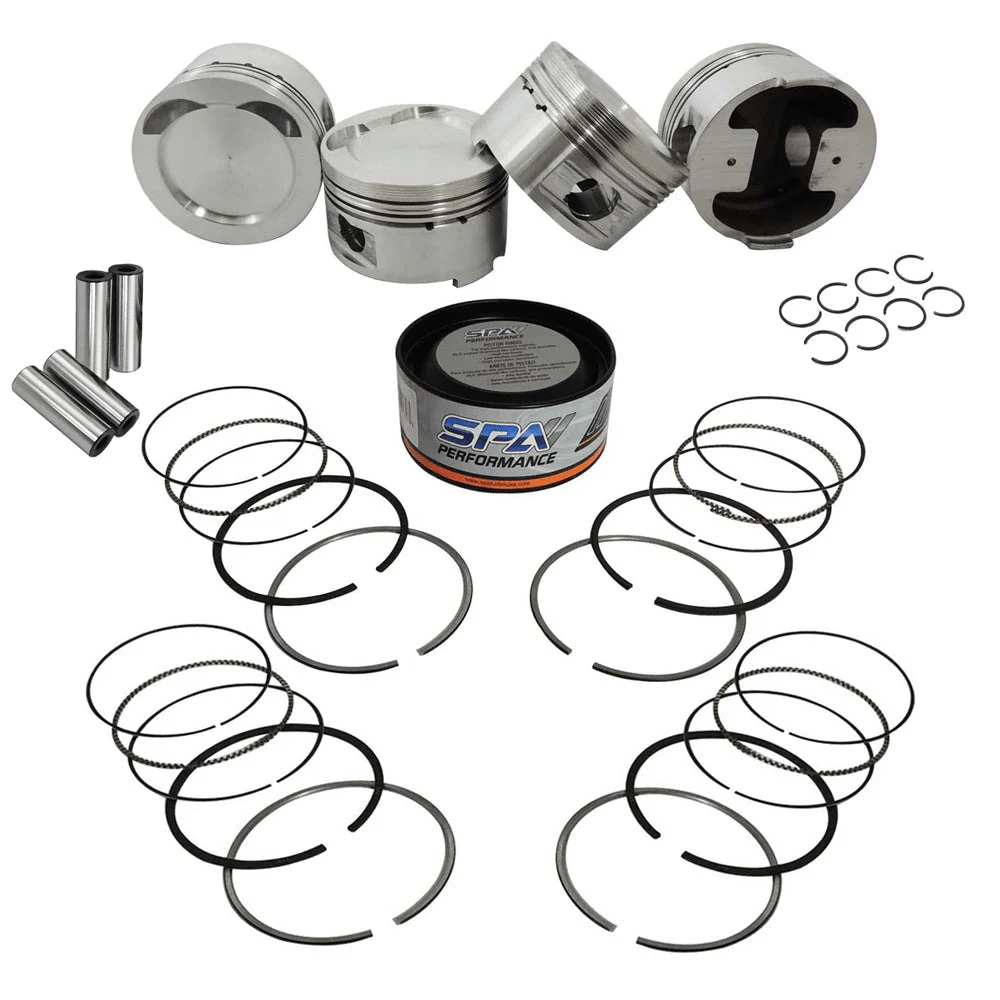

SPA TURBO Forged piston and rings set 83mm VW 9A 2.0L 16V
Recommended bore to piston to bore clearance: 0.08mm (For nitrous or extreme applications, consult your builder)
Piston ring grooves: 1.5 mm / 1.5 mm / 2.0mm
Compression height: 29,30mm.
Dish volume: 2cc
Pin offset: 1.10mm.
Material: Forged aluminum 4032 T6.
Average piston weight (unit, without pin): 391g (13,79 oz).
Rated for 1000hp.
Innovative high performance piston skirt design that provides:
1. Smaller piston to bore clearance
2. Less noise
3. Better ring seal
4. Higher power
5. Durability
Features:
Anti detonation grooves: protect the top ring by disrupting detonation waves and reduce piston-cylinder contact in high temperatures and engine RPM conditions.
Accumulator groove: accumulates residual combustion gasses reducing top ring flutter and improving seal.
Pin oil lubrication by broaches and oiler to reduce friction and increase durability.
Super A Piston Pin (63.45mm) – 4pcs set
Dimensions: 63.45mm x 20mm (length x O.D.)
Average unit weight: 116g (4.09 oz)
Rated for 1.000hp
Made from special steel alloys that combines optimal mass with high resistance.
Piston rings 83mm set
Contains 01 complete set for 4 cylinder engine.
Compatible with SPA Super A, with 1.5mm / 1.5mm and 2mm channels.
Ring thickness:
1st ring 1.5mm - Made of carbon steel, which is 35% more resistant than cast iron and on average 30% lighter. With DLC (Diamond-Like Carbon) treatment, which is the application of carbon particles, whose physical and chemical properties are very close to those of the diamond, providing greater resistance to the material and reducing the friction of the surface, which significantly reduces friction when working against other surfaces.
2nd ring 1.5mm - Made of cast iron.
3rd ring 2.0mm - Manufactured in 3 pieces, which guarantees easy maintenance, better stability in the control of the oil film and improves the oil removal through the piston lubrication holes, as it has a better area for displacing this oil.
Recommended bore to piston to bore clearance: 0.08mm (For nitrous or extreme applications, consult your builder)
Piston ring grooves: 1.5 mm / 1.5 mm / 2.0mm
Compression height: 29,30mm.
Dish volume: 2cc
Pin offset: 1.10mm.
Material: Forged aluminum 4032 T6.
Average piston weight (unit, without pin): 391g (13,79 oz).
Rated for 1000hp.
Innovative high performance piston skirt design that provides:
1. Smaller piston to bore clearance
2. Less noise
3. Better ring seal
4. Higher power
5. Durability
Features:
Anti detonation grooves: protect the top ring by disrupting detonation waves and reduce piston-cylinder contact in high temperatures and engine RPM conditions.
Accumulator groove: accumulates residual combustion gasses reducing top ring flutter and improving seal.
Pin oil lubrication by broaches and oiler to reduce friction and increase durability.
Super A Piston Pin (63.45mm) – 4pcs set
Dimensions: 63.45mm x 20mm (length x O.D.)
Average unit weight: 116g (4.09 oz)
Rated for 1.000hp
Made from special steel alloys that combines optimal mass with high resistance.
Piston rings 83mm set
Contains 01 complete set for 4 cylinder engine.
Compatible with SPA Super A, with 1.5mm / 1.5mm and 2mm channels.
Ring thickness:
1st ring 1.5mm - Made of carbon steel, which is 35% more resistant than cast iron and on average 30% lighter. With DLC (Diamond-Like Carbon) treatment, which is the application of carbon particles, whose physical and chemical properties are very close to those of the diamond, providing greater resistance to the material and reducing the friction of the surface, which significantly reduces friction when working against other surfaces.
2nd ring 1.5mm - Made of cast iron.
3rd ring 2.0mm - Manufactured in 3 pieces, which guarantees easy maintenance, better stability in the control of the oil film and improves the oil removal through the piston lubrication holes, as it has a better area for displacing this oil.
Original: $699.90
-65%$699.90
$244.96Description
Recommended bore to piston to bore clearance: 0.08mm (For nitrous or extreme applications, consult your builder)
Piston ring grooves: 1.5 mm / 1.5 mm / 2.0mm
Compression height: 29,30mm.
Dish volume: 2cc
Pin offset: 1.10mm.
Material: Forged aluminum 4032 T6.
Average piston weight (unit, without pin): 391g (13,79 oz).
Rated for 1000hp.
Innovative high performance piston skirt design that provides:
1. Smaller piston to bore clearance
2. Less noise
3. Better ring seal
4. Higher power
5. Durability
Features:
Anti detonation grooves: protect the top ring by disrupting detonation waves and reduce piston-cylinder contact in high temperatures and engine RPM conditions.
Accumulator groove: accumulates residual combustion gasses reducing top ring flutter and improving seal.
Pin oil lubrication by broaches and oiler to reduce friction and increase durability.
Super A Piston Pin (63.45mm) – 4pcs set
Dimensions: 63.45mm x 20mm (length x O.D.)
Average unit weight: 116g (4.09 oz)
Rated for 1.000hp
Made from special steel alloys that combines optimal mass with high resistance.
Piston rings 83mm set
Contains 01 complete set for 4 cylinder engine.
Compatible with SPA Super A, with 1.5mm / 1.5mm and 2mm channels.
Ring thickness:
1st ring 1.5mm - Made of carbon steel, which is 35% more resistant than cast iron and on average 30% lighter. With DLC (Diamond-Like Carbon) treatment, which is the application of carbon particles, whose physical and chemical properties are very close to those of the diamond, providing greater resistance to the material and reducing the friction of the surface, which significantly reduces friction when working against other surfaces.
2nd ring 1.5mm - Made of cast iron.
3rd ring 2.0mm - Manufactured in 3 pieces, which guarantees easy maintenance, better stability in the control of the oil film and improves the oil removal through the piston lubrication holes, as it has a better area for displacing this oil.
