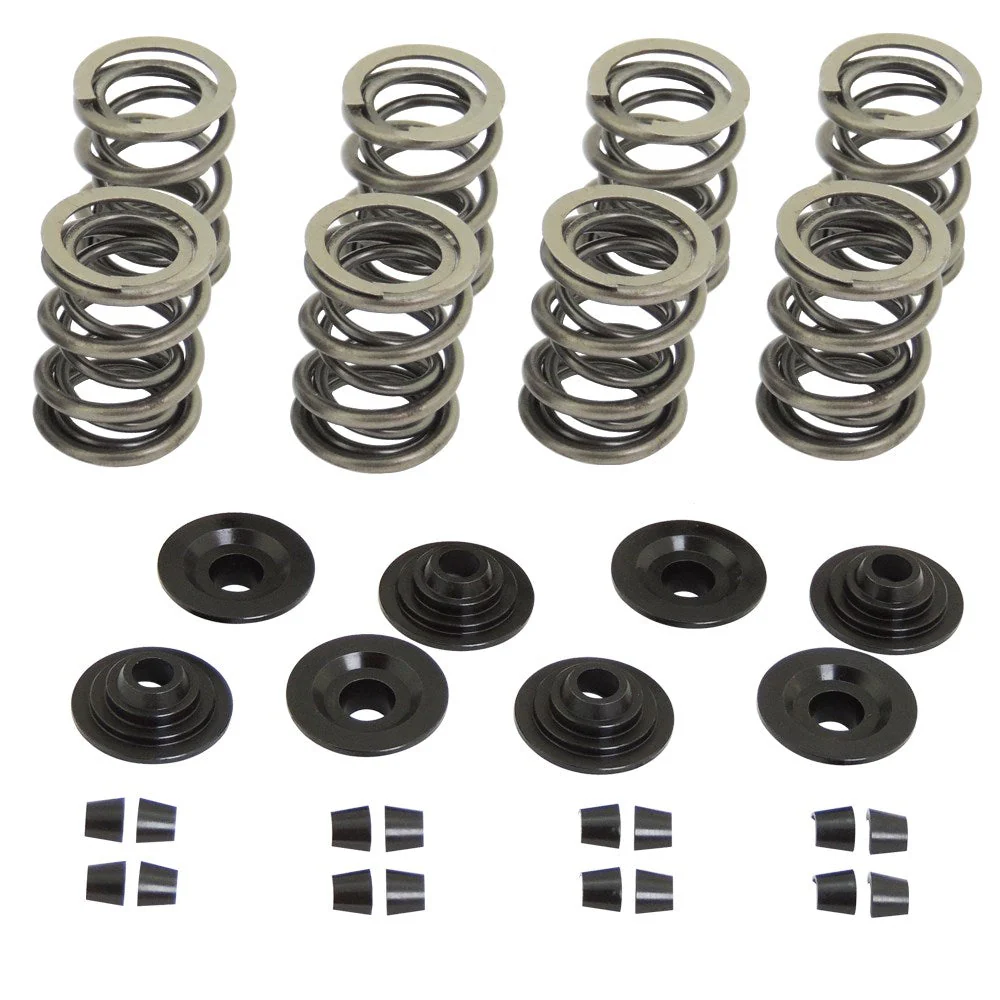

VW 8V HD DUAL SPRING SET FOR HIGH LIFT CAMSHAFT
For Up to 15 mm valve lift cams
10 degree lock to retainer seat angle
AISI 4140 Chromoly
will fit VW / Audi 8v SOHC engines, ABA, PG, G60 and others
Springs are made in UK
Note: this set requires Cam followers with 33.00mm internal diameter size.
Springs:
External spring diameter: 32.60 mm
Internal spring diameter: 25.30 mm
Height: 42.00 mm
Assembly height of 36.00 mm - 80lbs
Load @ 12.00 mm lift - 205lbs
Load @ 15.00 mm lift - 245lbs
Maximum Lift: 15.00 mm
Valve lock:
AISI 4140 Hardened steel
for 7.00 mm 3 groove valve
10 degree
spring retainers:
AISI 4140 Hardened steel
10 degree
10 degree lock to retainer seat angle
AISI 4140 Chromoly
will fit VW / Audi 8v SOHC engines, ABA, PG, G60 and others
Springs are made in UK
Note: this set requires Cam followers with 33.00mm internal diameter size.
Springs:
External spring diameter: 32.60 mm
Internal spring diameter: 25.30 mm
Height: 42.00 mm
Assembly height of 36.00 mm - 80lbs
Load @ 12.00 mm lift - 205lbs
Load @ 15.00 mm lift - 245lbs
Maximum Lift: 15.00 mm
Valve lock:
AISI 4140 Hardened steel
for 7.00 mm 3 groove valve
10 degree
spring retainers:
AISI 4140 Hardened steel
10 degree
For Up to 15 mm valve lift cams
10 degree lock to retainer seat angle
AISI 4140 Chromoly
will fit VW / Audi 8v SOHC engines, ABA, PG, G60 and others
Springs are made in UK
Note: this set requires Cam followers with 33.00mm internal diameter size.
Springs:
External spring diameter: 32.60 mm
Internal spring diameter: 25.30 mm
Height: 42.00 mm
Assembly height of 36.00 mm - 80lbs
Load @ 12.00 mm lift - 205lbs
Load @ 15.00 mm lift - 245lbs
Maximum Lift: 15.00 mm
Valve lock:
AISI 4140 Hardened steel
for 7.00 mm 3 groove valve
10 degree
spring retainers:
AISI 4140 Hardened steel
10 degree
10 degree lock to retainer seat angle
AISI 4140 Chromoly
will fit VW / Audi 8v SOHC engines, ABA, PG, G60 and others
Springs are made in UK
Note: this set requires Cam followers with 33.00mm internal diameter size.
Springs:
External spring diameter: 32.60 mm
Internal spring diameter: 25.30 mm
Height: 42.00 mm
Assembly height of 36.00 mm - 80lbs
Load @ 12.00 mm lift - 205lbs
Load @ 15.00 mm lift - 245lbs
Maximum Lift: 15.00 mm
Valve lock:
AISI 4140 Hardened steel
for 7.00 mm 3 groove valve
10 degree
spring retainers:
AISI 4140 Hardened steel
10 degree
$159.90
VW 8V HD DUAL SPRING SET FOR HIGH LIFT CAMSHAFT—
$159.90
Description
For Up to 15 mm valve lift cams
10 degree lock to retainer seat angle
AISI 4140 Chromoly
will fit VW / Audi 8v SOHC engines, ABA, PG, G60 and others
Springs are made in UK
Note: this set requires Cam followers with 33.00mm internal diameter size.
Springs:
External spring diameter: 32.60 mm
Internal spring diameter: 25.30 mm
Height: 42.00 mm
Assembly height of 36.00 mm - 80lbs
Load @ 12.00 mm lift - 205lbs
Load @ 15.00 mm lift - 245lbs
Maximum Lift: 15.00 mm
Valve lock:
AISI 4140 Hardened steel
for 7.00 mm 3 groove valve
10 degree
spring retainers:
AISI 4140 Hardened steel
10 degree
10 degree lock to retainer seat angle
AISI 4140 Chromoly
will fit VW / Audi 8v SOHC engines, ABA, PG, G60 and others
Springs are made in UK
Note: this set requires Cam followers with 33.00mm internal diameter size.
Springs:
External spring diameter: 32.60 mm
Internal spring diameter: 25.30 mm
Height: 42.00 mm
Assembly height of 36.00 mm - 80lbs
Load @ 12.00 mm lift - 205lbs
Load @ 15.00 mm lift - 245lbs
Maximum Lift: 15.00 mm
Valve lock:
AISI 4140 Hardened steel
for 7.00 mm 3 groove valve
10 degree
spring retainers:
AISI 4140 Hardened steel
10 degree
